120 Chapter 6 Configuring branch office tunnels

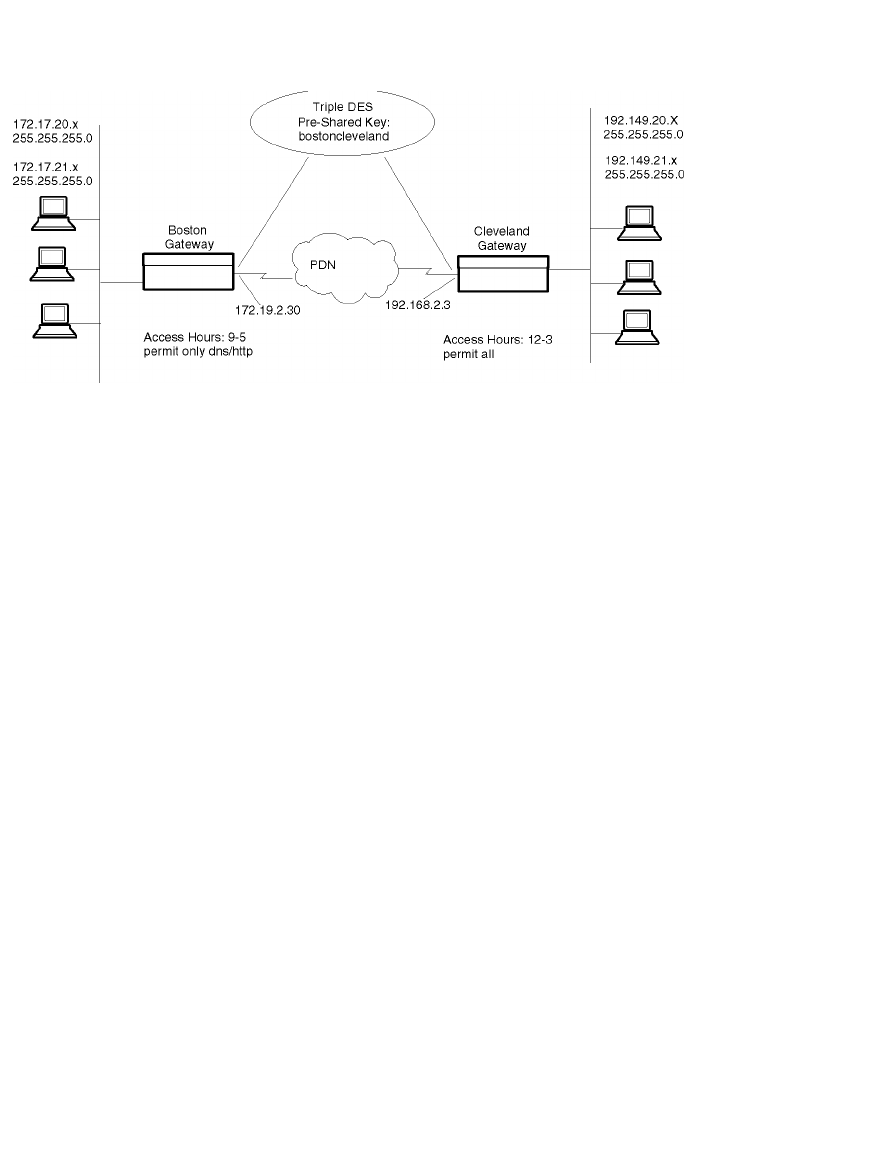

Figure 19 Typical branch office environment

The section “Configuring a branch office” on page 128” provides sample branch

office configurations for two locations, Boston and Cleveland. The initial

configurations show connections established with pre-shared keys.

In a mixed environment, you might want to tunnel connections to certain

networks, and have all other traffic go to the Internet. You must configure the

default Nortel VPN Router with a static route to the Nortel VPN Router for

accessible networks (refer to Profiles > Branch Office > Edit Branch Office

Connection). The default private LAN router (the firewall) must redirect packets

intended for remote branch office subnets.

In this case, as with any branch-to-branch configuration, you must configure each

branch Nortel VPN Router with the same encryption settings and pre-shared key

(password). Of course, the accessible local and remote subnetwork addresses and

subnet masks would be inverted in each Nortel VPN Router’s configuration.

Figure 20 on page 121 shows a branch-to-branch configuration with a firewall and

a router.
